Outback Citrus

Load Analysis

Ave Summer Demand: 32.9kWh/day ave

Ave Winter Demand: 30.05kWh/day ave

Demand Surge: 27.74 kVA

Objectives & Site Considerations

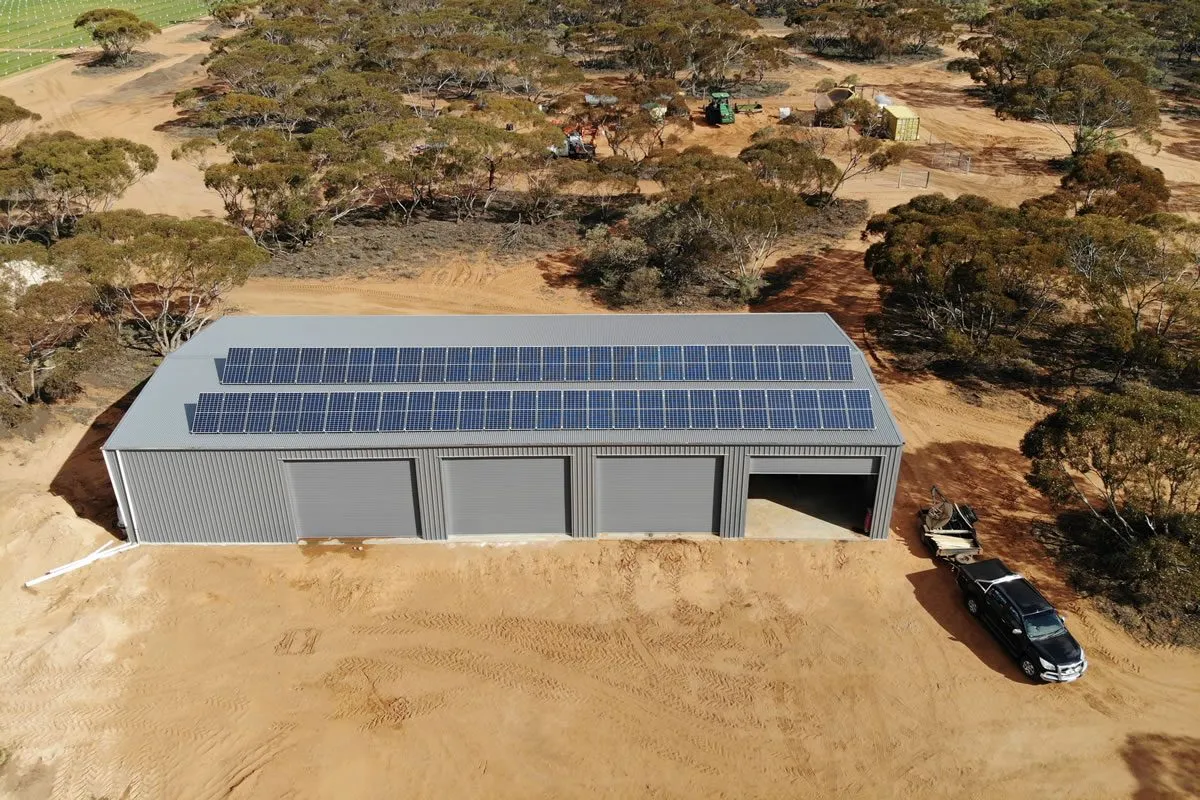

In April 2018 Cathy from Outback Citrus Pty Ltd brought some land in Cooltong SA. “I started preparing the land and installing irrigation to begin planting my first section of Almonds in July. During this time I also had a shed installed where the filters and fertigation system were installed. I did not have any power at the shed so looked at both solar and having power lines brought to the shed. The quote for both came in around the same cost and I went with solar, as electricity costs are an ongoing expense which could go up in price.”

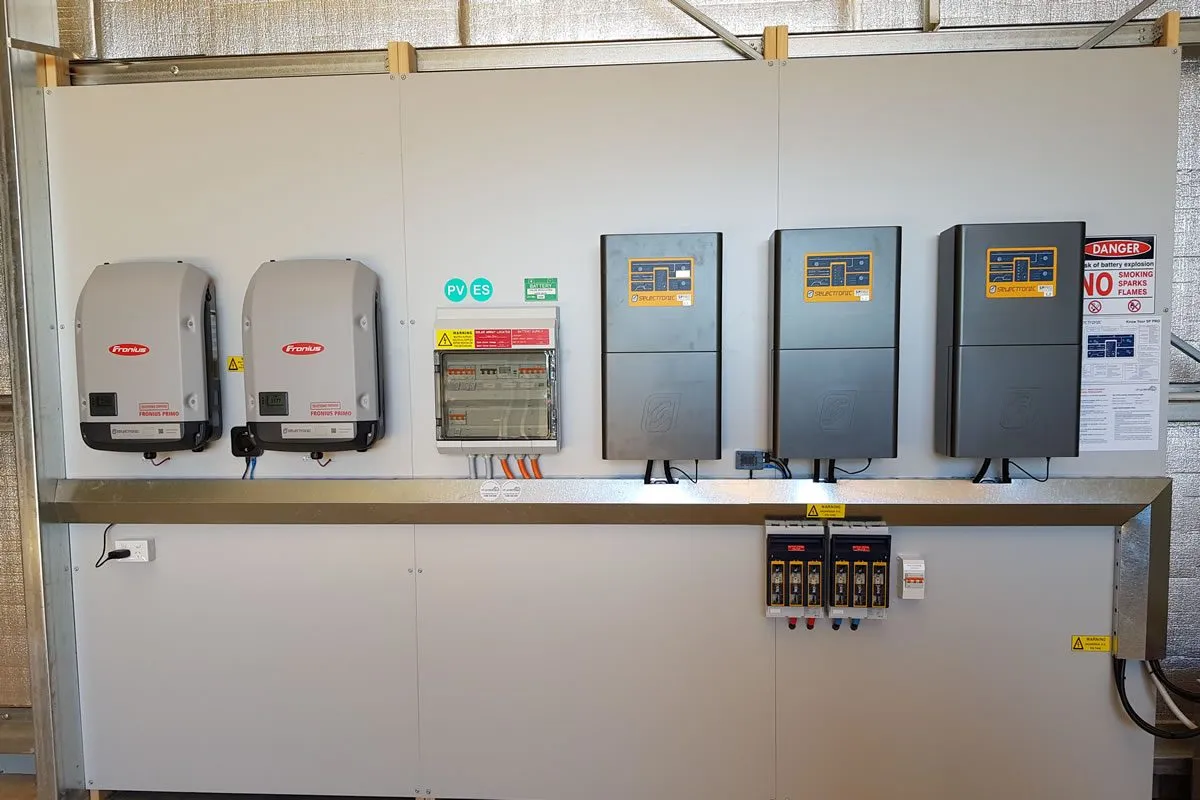

System Design

• Selectronic Inverter/Chargers (22.5kW)
• REC 295W Solar Modules (15.34kW)
• Fronius Primo 8.2 Solar Inverters
• BAE VRLA Batteries (37.8kWh)
• Selectronic Select.Live monitoring
• Tilted Roof-Mount Solar Framing
