Small Off-Grid Replacement System

Objective:

This couple had been living with a 10 year old, 24V off-grid system that was on the property when they bought it. They battled with unreliable and insufficient power for as long as they could before looking into getting a replacement system. The entire system needed to be replaced, and they also wanted to have their existing Honda generator wired for auto-start ability.

Site Considerations:

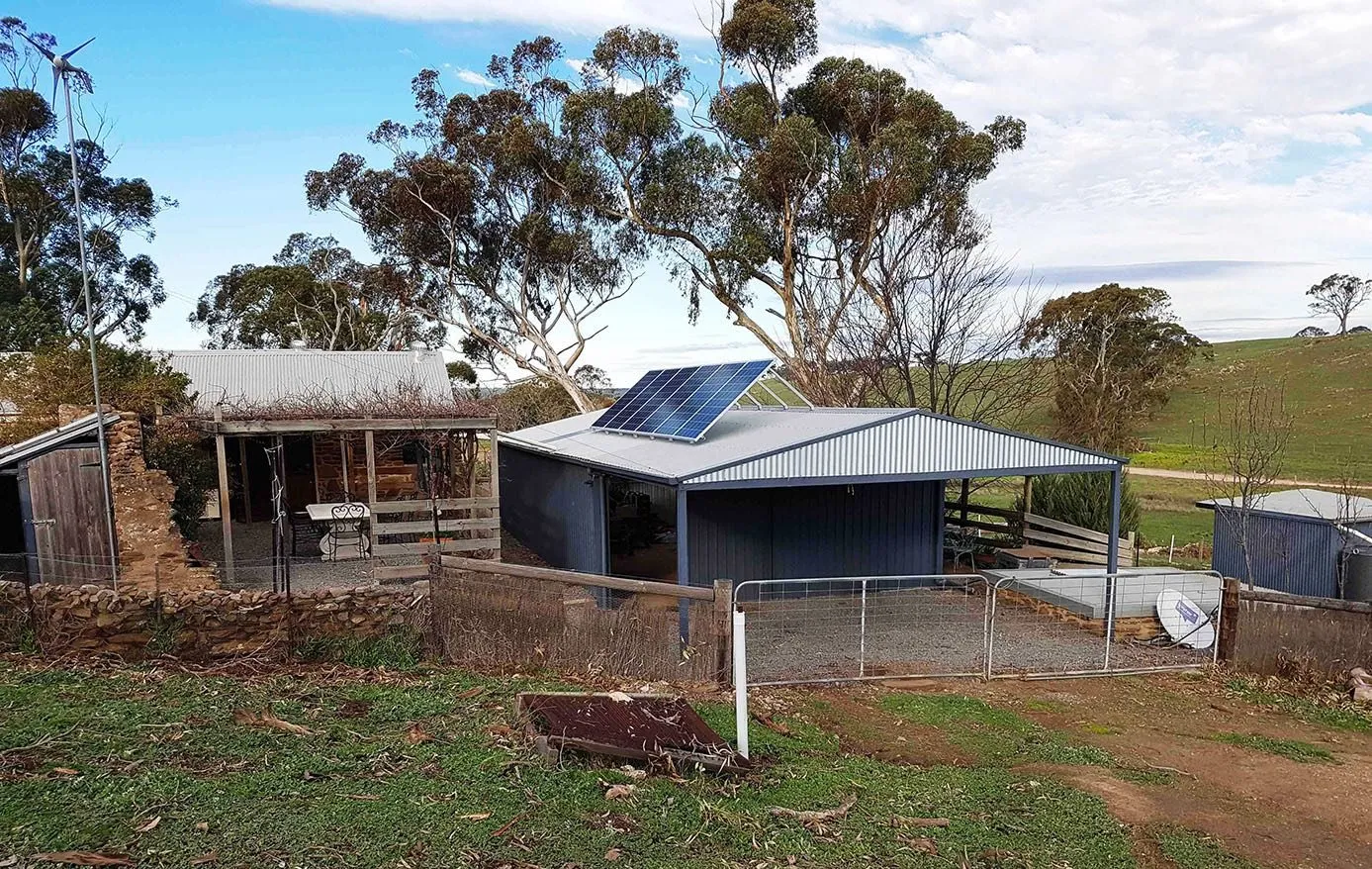

With relatively light loads, only a small off-grid system was needed. Some existing switches needed to be replaced, and a satellite dish needed to be removed to make room for the new solar array.

System Design:

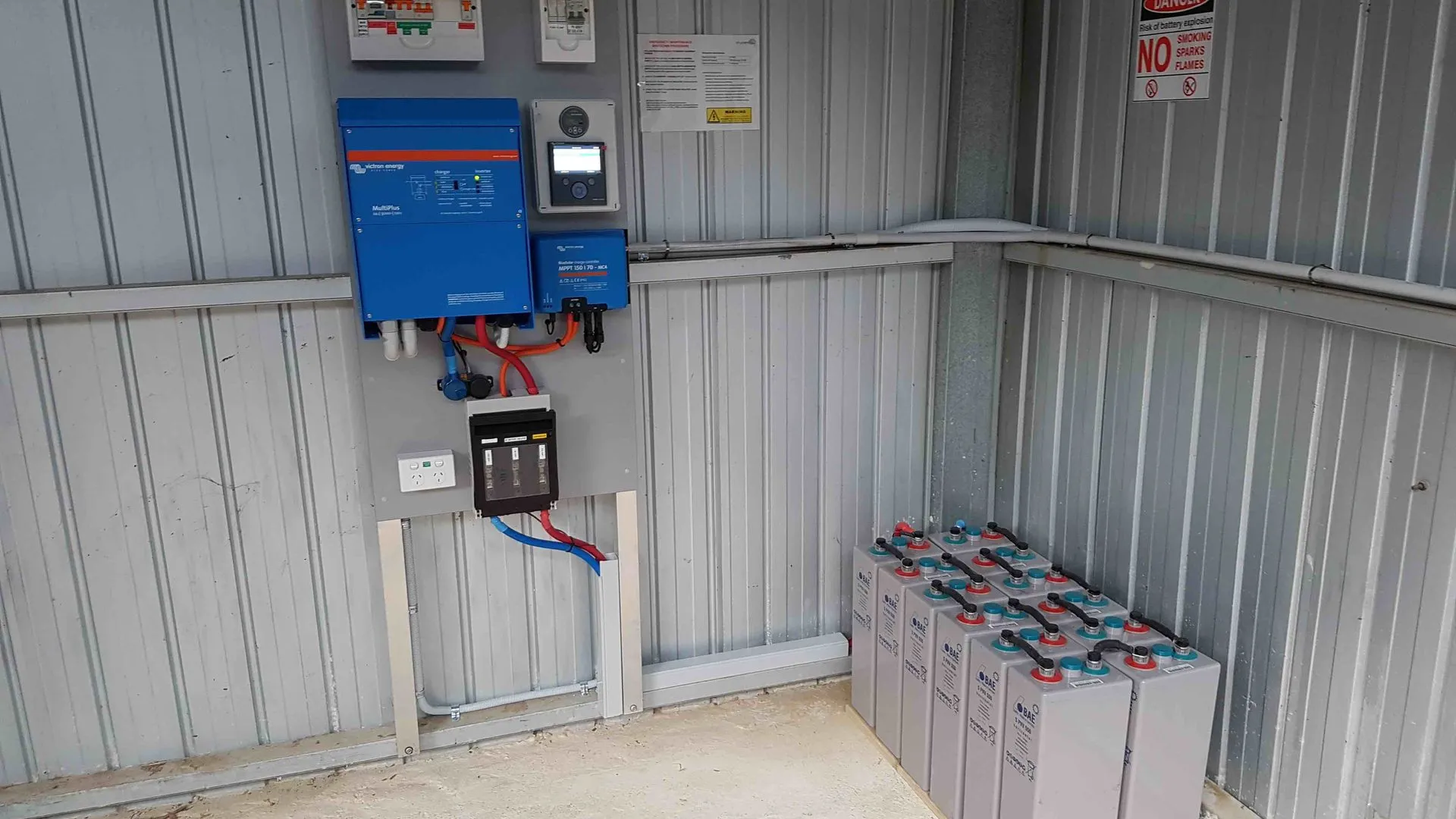

• Victron MultiPlus inverter charger
• BAE VRLA sealed gel batteries (13kWh)
• 6 x Trina Solar 260W solar modules
• Victron BlueSolar charge controller
• Tilted roof-mount array framing
