PROJECT NAME:

Investment Property with Lithium Storage

PROJECT NAME
Investment Property with Lithium Storage
SYSTEM TYPE / APPLICATION
Grid Storage – Autonomy (Smart Home) System
LOCATION
Brisbane (Yuggera Country), QLD
INSTALLED
July 2015
KEY BRANDS
SMA, Sony, Trina

PROJECT DETAIL

Objective:

Customer wanted this investment property to have the latest technology, a level of energy self-sufficiency and control over energy costs.

Load Analysis:

50kWh average daily summer/winter demand; large potential peak loads

Site Considerations:

3-phase grid power; 3 storeys

System Design:

  • OEA Grid Autonomy 180-48 (Smart Home) System – 18kW 3-phase output
  • OEA Adapt mount – installed in utility room
  • 20kWh L-ion battery storage with BMS

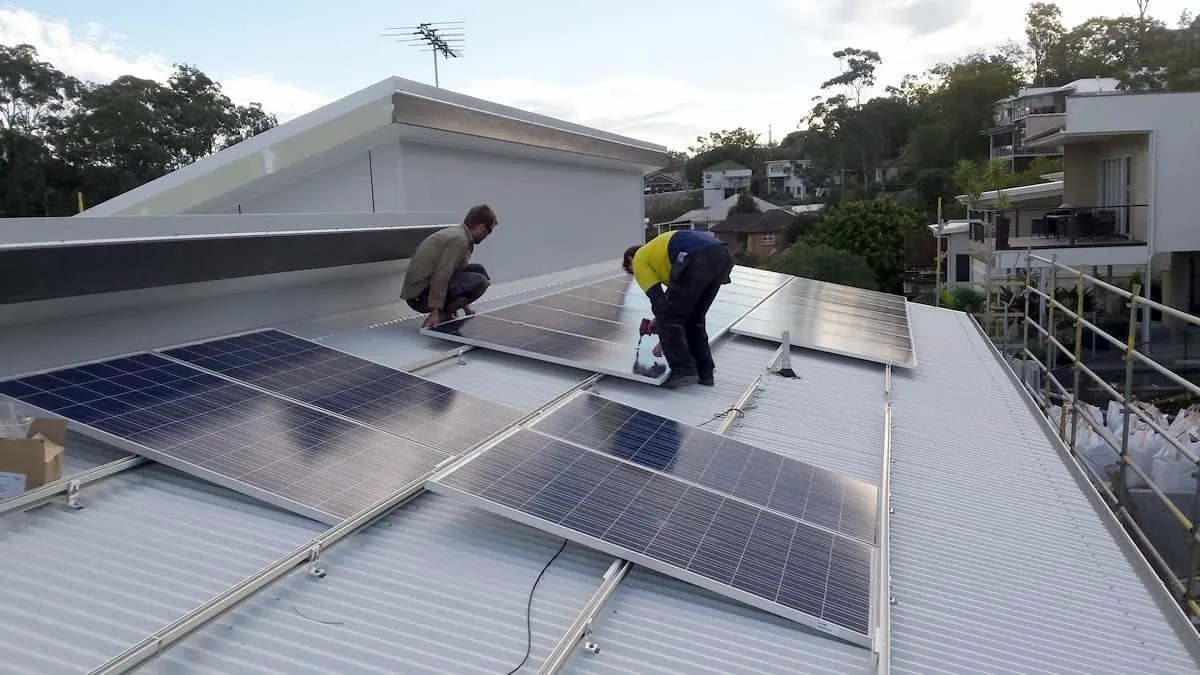

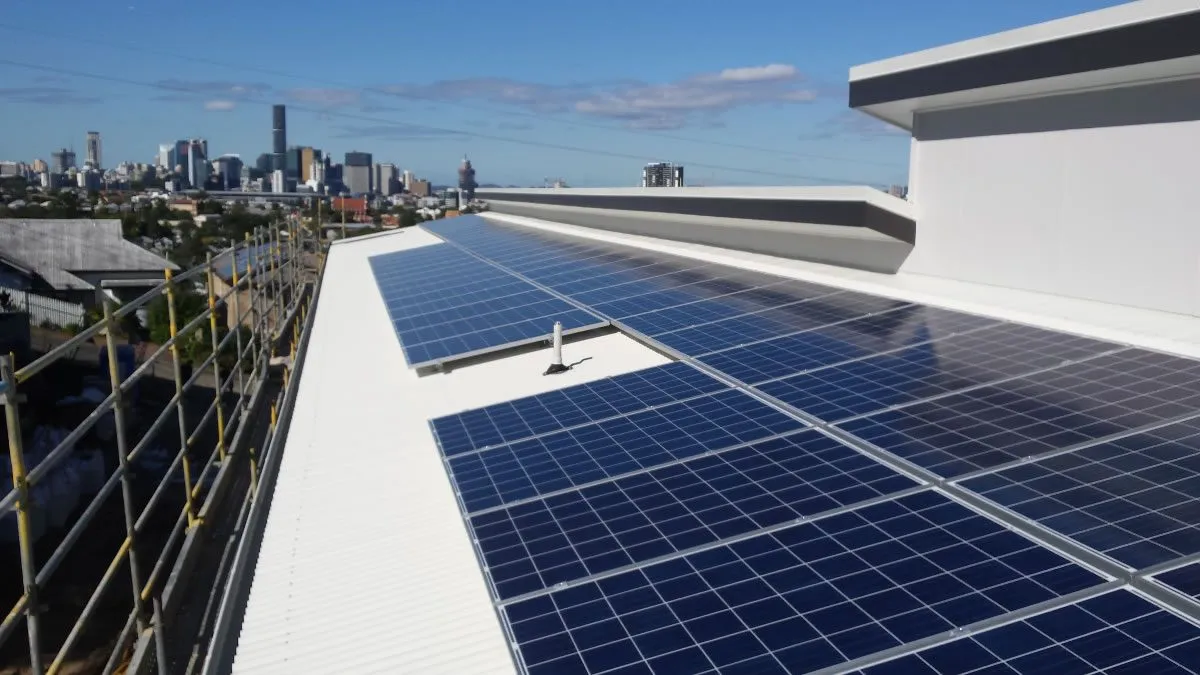

  • 56kW Polycrystalline solar array on 3rd storey northern roof surface – yielding an estimated 120% of average demand, and 110% in winter
  • SMA Home Manager energy management system and monitoring
